Description
THE LC1 FLOODLIGHT
LIGHT UP YOUR DRIVEWAY SAFELY TODAY!
Smart Security Light Camera
Light up dark spots and add security to outdoor areas around your house with a powerful full-HD security camera armed with ultra-bright lights and defense.
Light the Way Back Home
With dual lights that produce a combined brightness of 2500 lumens, the LC1 brightens up your way home and illuminates every dark corner of your front porch, backyard, and anywhere else that needs light.
Extra Protection with Active Defense

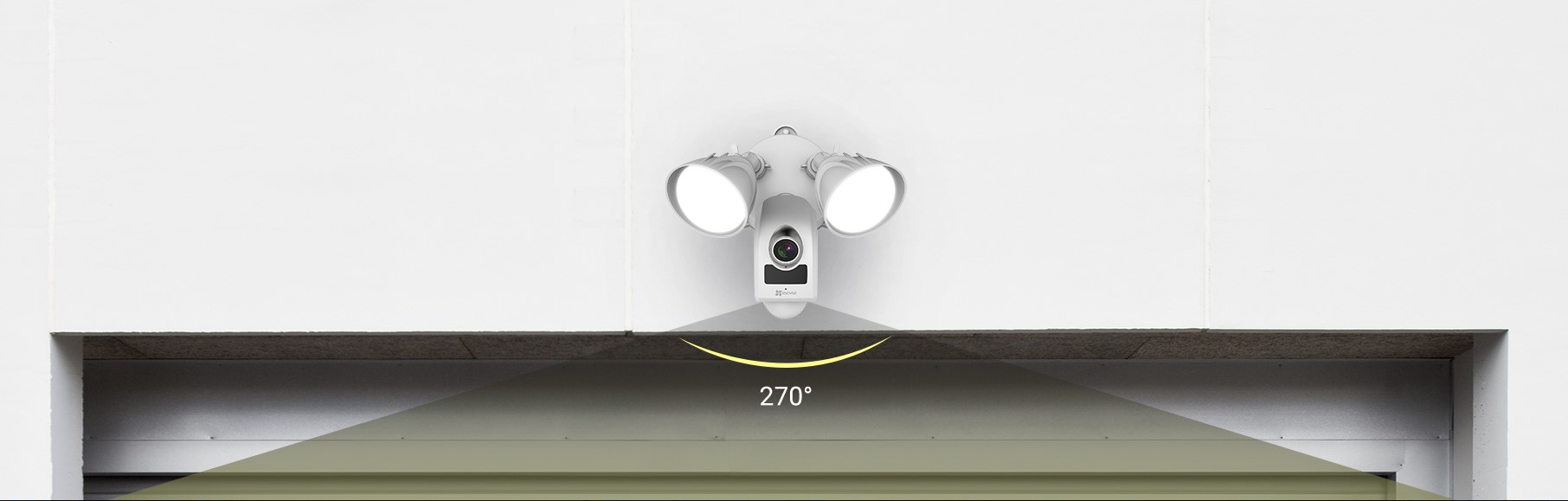

When someone enters LC1’s 270-degree PIR motion detection area, it emits a 100 dB alarm with flashing light to deter potential intruders. Simultaneously it sends an alert with captured images to your smartphones. You can also customize the detection area to keep an eye on places where you need it the most.
Sharpest Night Guard
The LC1 supports night vision up to 18 meters (60 ft.). It renders sharp, full-HD 1080p images even where there are no lights, so you keep a vigilant eye all night long.
Strong and Durable
Design for outdoor use, the LC1 braves any weather – sun, rain, or snow, it stands strong.
LC1
| Model Parameters | |
|---|---|
| Model | CS-LC1-A0-1B2WPFRL |
| System Parameters | |
| Processor | High-Performance Embedded SOC Processor |
| Operation System | Embedded Linux |
| Light Parameters | |
| Lamp | 2 |
| LED | SMD LED |
| Brightness | 2500LM (-10%) |
| CRI | 80 |
| Color Temperature | 3000k |
| Life-span | @B50L70 @Ta 25℃ 48000H |
| PIR Sensor Detection | |
| Detection Distance | 30 ft |
| Detection Range | 270 degrees |
| Motion Detection | Supports |
| Camera Parameters | |
| Resolution | 1080p |
| Field of View | 140°(Diagonal), 115°(Horizontal) |
| Night Vision | Up to 18m/60ft |
| Video Parameters | |
| Compression Standard | Smart H.264 |
| Max. Resolution | 1920 × 1080, FHD |
| Frame Rate | 50Hz @ 25fps, 60Hz @ 30fps Adaptive frame rate of network transmission |
| DNR | 3D DNR |
| BLC | Supports |
| Audio Parameters | |
| Audio Input | Built-in omni-direction microphone |
| Audio Output | Built-in loudspeaker |
| Audio Quality | Noise suppression |
| Network Parameters | |
| Wireless | Wireless 802.11 b/g/n @2.4GHz only (2T2R, Dual-antenna) |
| Network Configuration | Soft AP Configuration |
| Minimum network requirement | 2.0 Mbps |
| Storage Parameters | |
| Local Storage | Support Micro SD Card (Up to 128GB) |
| Cloud Storage | EZVIZ Cloud Storage (Optional) |
| Event | |
| Sensor | PIR Motion Detection Sensor |
| Alarm | Customized Alert Area |
| Intelligence | Motion Detection |
| General | |
| Siren | 100-decibel alram |
| Fixture Material | Cast aluminum (Lights) and Plastics (Camera) |
| Operating Conditions | -30ºC ~ 50ºC (-20ºF ~ 120ºF), Humidity 95% or les |
| Power Supply | Hardwired (110V-240V) |
| Power Consumption | ≤2W (normal),≤8W (max) |
| Ingress Protection Grade | IP65 on camera (Wet Location for light) |
| Product Dimensions | 196mm x 211mm x 227mm |
| Package Dimensions | 235mm x 250mm x 270 mm |
| Weight | 1757g |
