A chic décor to safeguard your home smartly

It’s time to upgrade your bulky cameras with the latest CB2 to match your home décor taste. Petite in size, and battery-powered with a detachable magnetic base, this smart gadget can basically fit any interior space while capturing crucial moments in great clarity from day to night. It detects human motions in real-time and offers two-way communications, serving perfectly as a baby monitor or pet camera at home.

Looking like a decorative accessory added to your bookshelf or nightstand, the CB2 is available in two color options to accommodate your interior design styles. This cube-shaped and palm-sized camera can be placed freely in any room as you’d like.

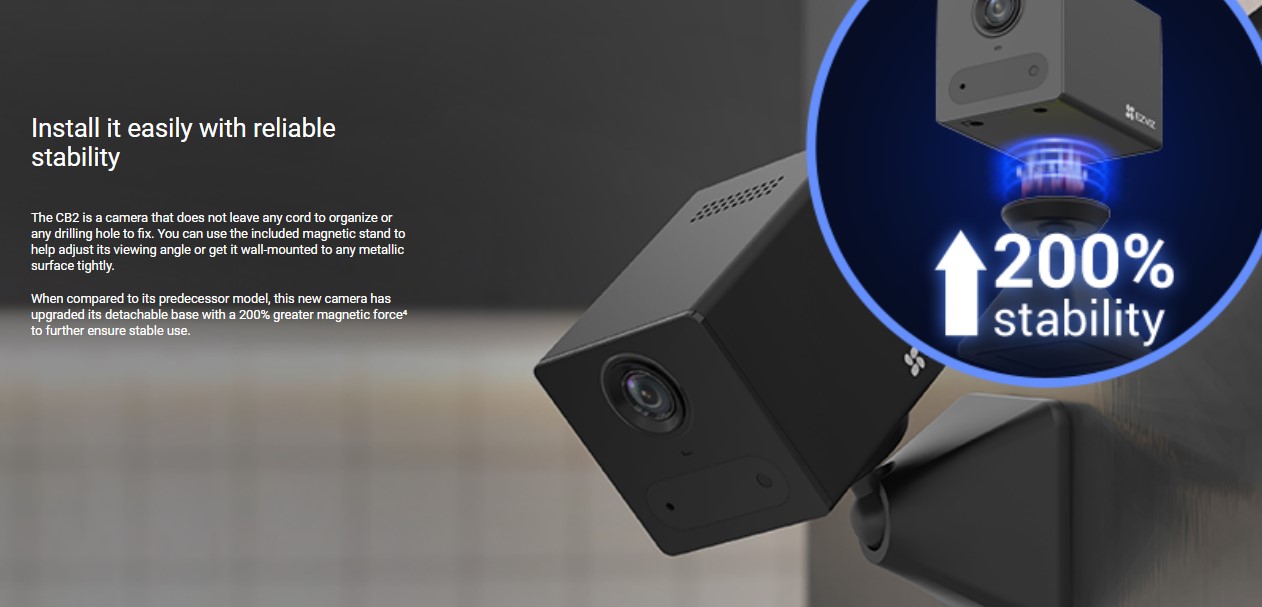

Install it easily with reliable stability

The CB2 is a camera that does not leave any cord to organize or any drilling hole to fix. You can use the included magnetic stand to help adjust its viewing angle or get it wall-mounted to any metallic surface tightly.

When compared to its predecessor model, this new camera has upgraded its detachable base with a 200% greater magnetic force to further ensure stable use.

Stay powered on, with no strings attached

The CB2 is embedded with a 2,000 mAh rechargeable battery to run up to 50 days on a full charge¹ . In emergencies or power outages, when most home cameras stop working, your CB2 will continue to operate and record events in its local memory .

Smart alerts that truly matter

Don’t want to get disturbed too often by alerts on unimportant moving objects? The CB2's embedded PIR sensor and human-shape detection algorithm work together to better distinguish moving people on camera. In this way, it gets your attention when things matter.

Smart integration, hands-free control

Easily manage your CB2 via the EZVIZ App. What’s better, by working seamlessly with voice assistants, you can voice-enable the live view to check what’s happening on a bigger screen.

Connect and care, from anywhere

Use your mobile phone to speak in real time to your loved ones who appear in your camera view, so you’ll know that they’re safe at home.

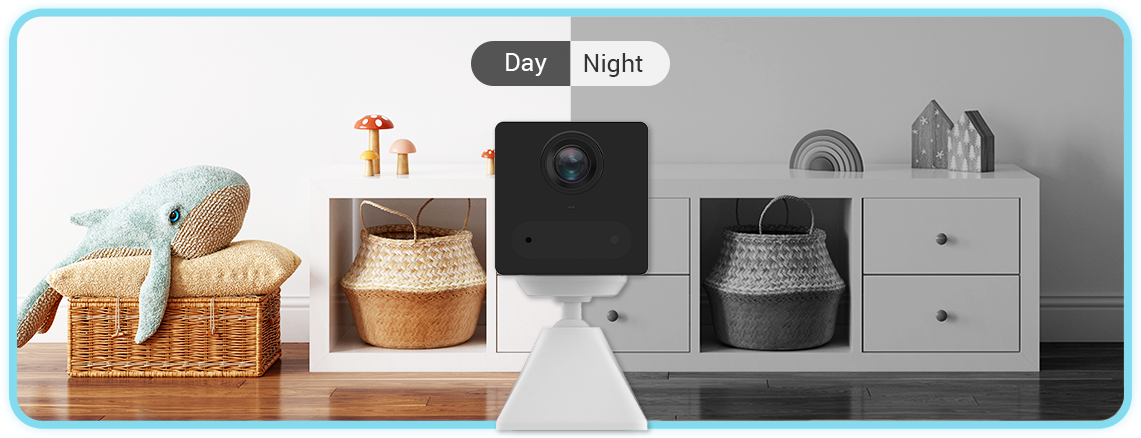

Great vision for round-the-clock protection

In addition to crisp 1080p video quality, the CB2 renders clear night vision to provide peace of mind even in pitch black darkness.

A visual diary made of precious moments

The CB2 ensures that you capture unforgettable moments and store the memories safely.

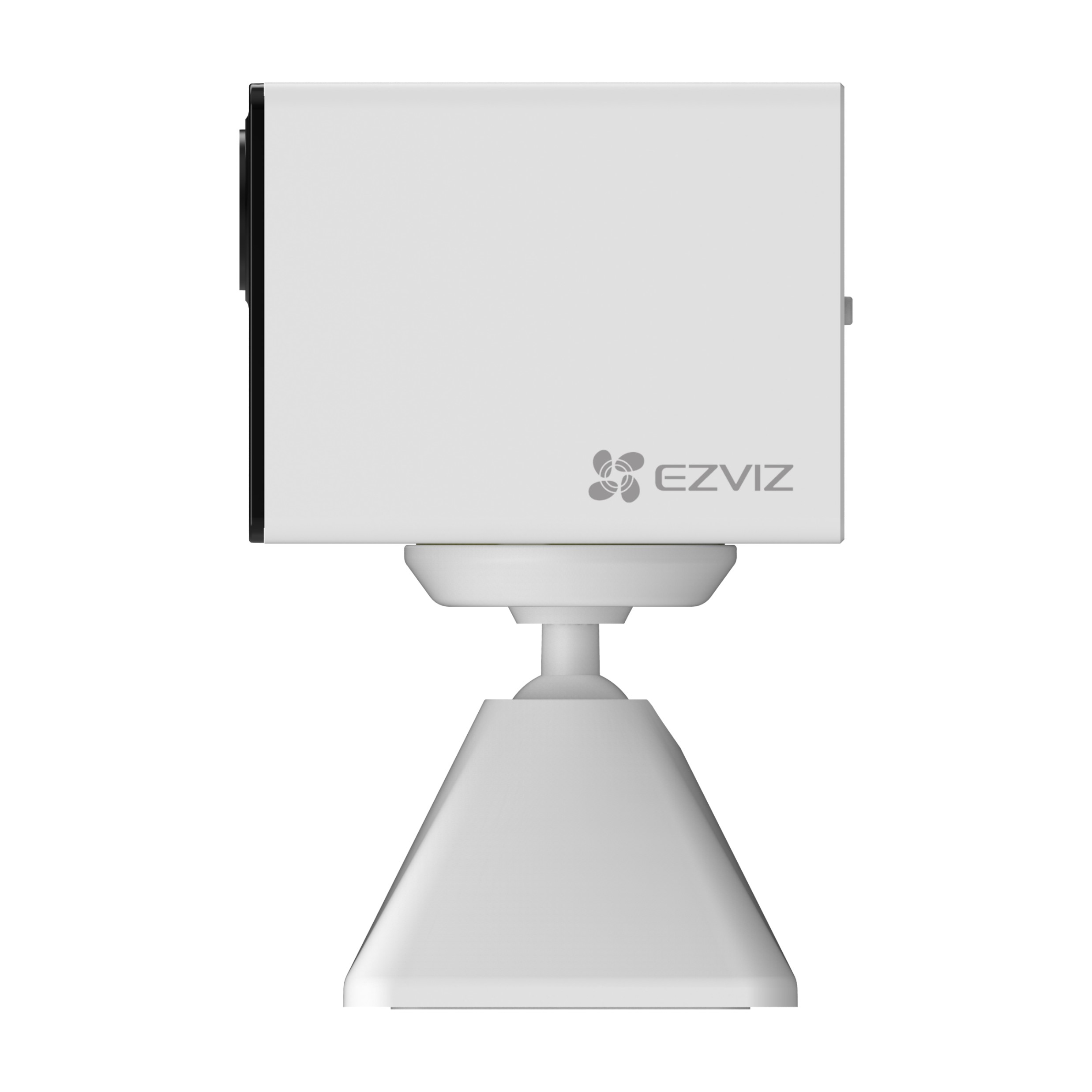

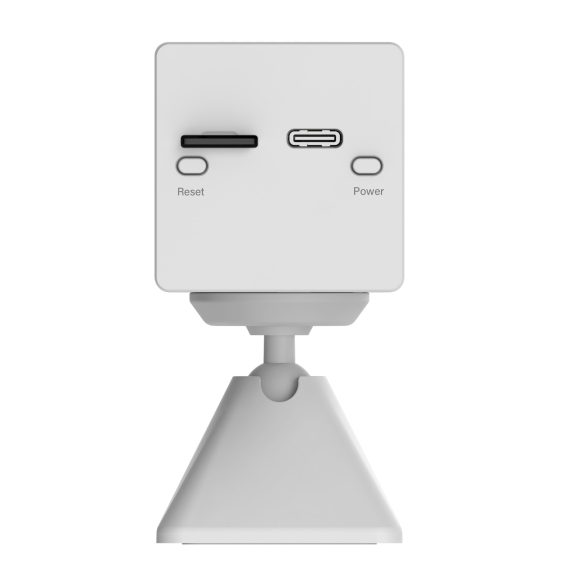

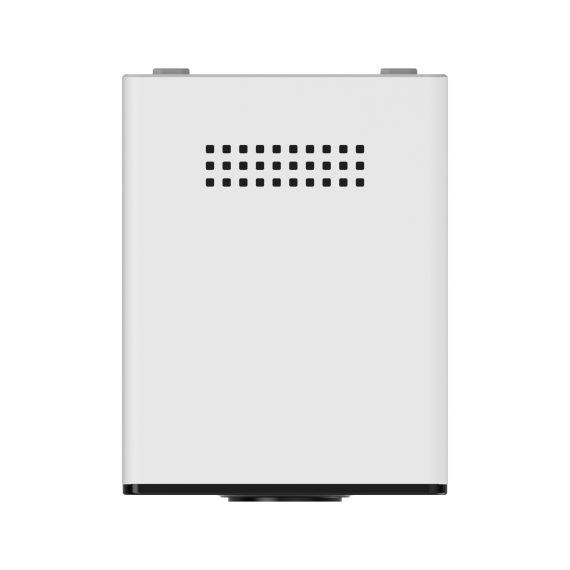

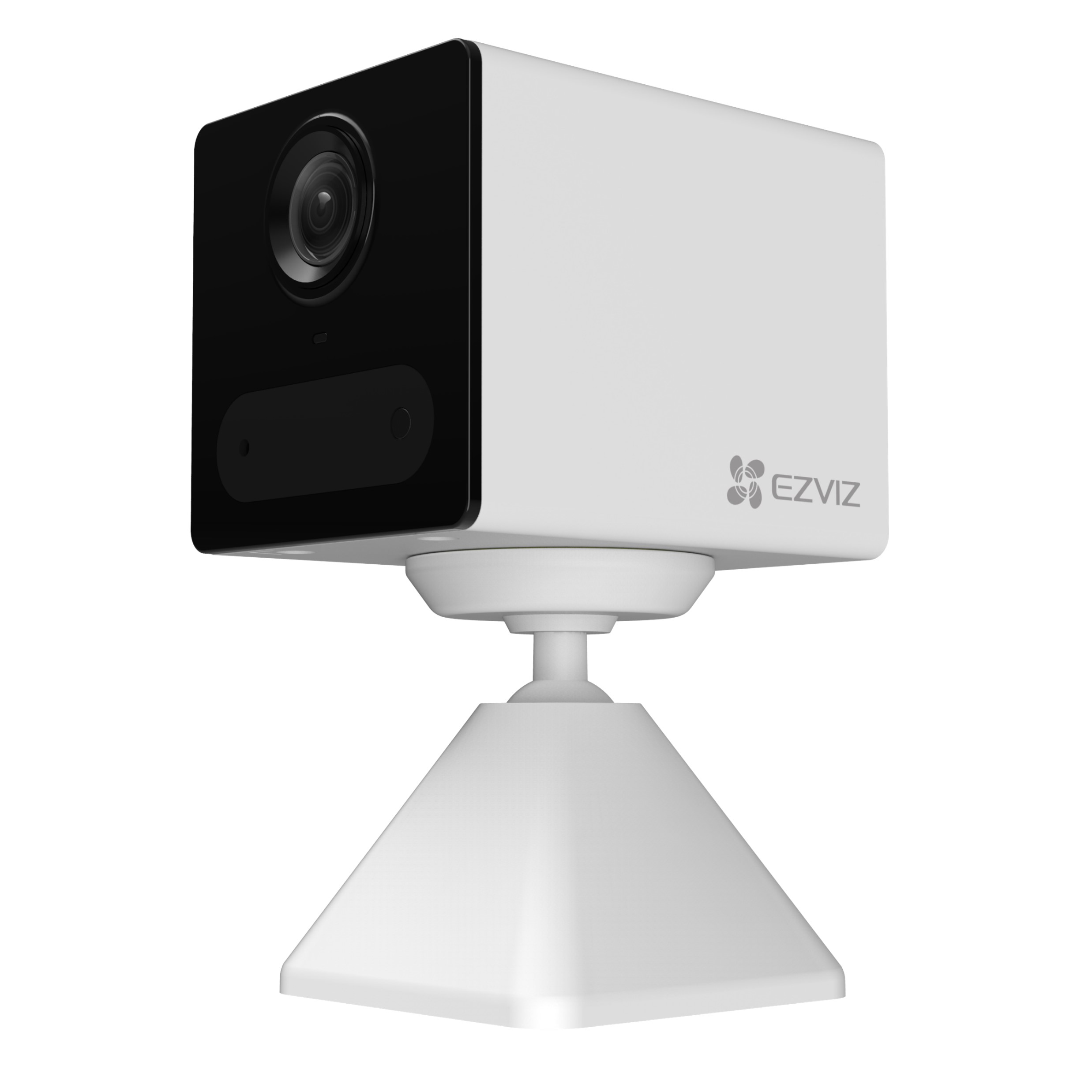

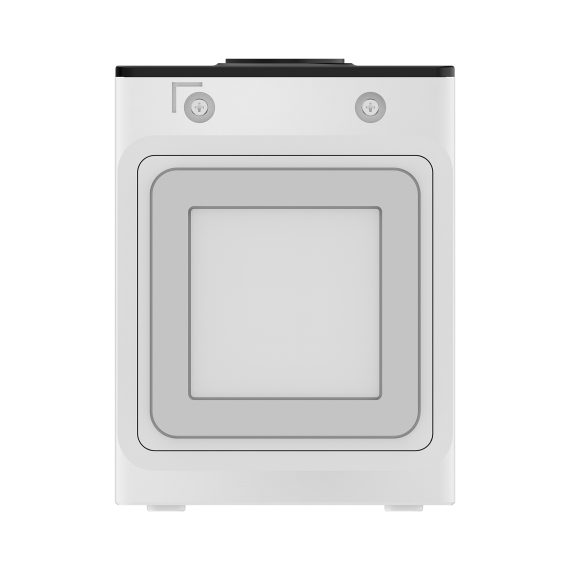

CB2

Two colors that go with different home styles

Specifications

Specifications
Model	CS-CB2-R100-2D2WF
Camera
Image Sensor	1/2.8” 2-Megapixel Progressive Scan CMOS Sensor
Shutter Speed	Self-Adaptive Shutter
Lens	4 mm @ F1.6, view angle: 100°, 85° (Diagonal), 46° (Horizontal)
Night Vision	Max. 5 m / 16 ft
Minimum Illumination	0.1 Lux
Lens Mount	M12
Day & Night	IR-cut Filter with Auto Switch
DNR	3D DNR
Network
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud Proprietary Protocol
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Wired Network	Does not support
Minimum Network Requirement	1 Mbps
Video & Audio
Max. Resolution	1920 × 1080
Frame Rate	15fps. Self-Adaptive during Network Transmission
Video Compression	H.265 / H.264
Video Bit Rate	Full HD; Hi-Def; Standard
Audio Bit Rate	Self-Adaptive
Max. Bitrate	1 Mbps
Function
Smart Alarm	Supports smart human motion detection
Customized Alert Area	Supports
Two-way Talk	Supports
Storage
Local Storage	Supports microSD card (Up to 512 GB)
Cloud Storage	Supports EZVIZ CloudPlay storage (subscription required)
General
Operating Conditions	-10°C to 45°C (14°F to 113 °F ), Humidity 95% or Less (Non-condensing)
Power Supply	DC 5V/1A (Purchased Separately)
Battery Capacity	2000 mAh
Dimensions	50.5 × 39.1 × 39.1 mm (1.99 ×1.54 × 1.54 inch)
Packaging Dimensions	126 × 91× 50 mm (4.96 × 3.58 × 1.97 inch)
Net Weight	86.8 g (3.06 oz)
With Package	273g (9.63 oz)
In the box
In the box	- CB2 Camera
	- Magnetic Base
	- Power Cable
	- Foam Sticker
	- Mounting Metal Plate
	- Regulatory Information
	- Quick Start Guide
Certifications
Certifications	CE / WEEE / RoHS / REACH / UL
