Non-stop security now automated

As possibly the first solar 4K camera that applies the unique AOV (Always-On Video) technology, the CB5 is able to provide true 24/7 monitoring without human intervention. By awakening itself at scheduled intervals, the CB5 automatically captures and records crucial moments to ensure nothing sneaks under its continuous watch.

Powerful detection without a subscription

The CB5 starts detecting important activities around your home the moment that you have it installed, without any hidden fee to lock out advanced features. It smartly distinguishes people and cars from other trivial moving objects, so you do not receive tons of unwanted notifications.

Extra-large storage for everyday videos

Even huge video files and detection clips in a busy day can be properly and safely stored without a problem. You can use a large microSD card to keep everything locally without any commitment to a monthly plan. Or, simply enjoy the services provided by the EZVIZ CloudPlay⁵ for less hassles.

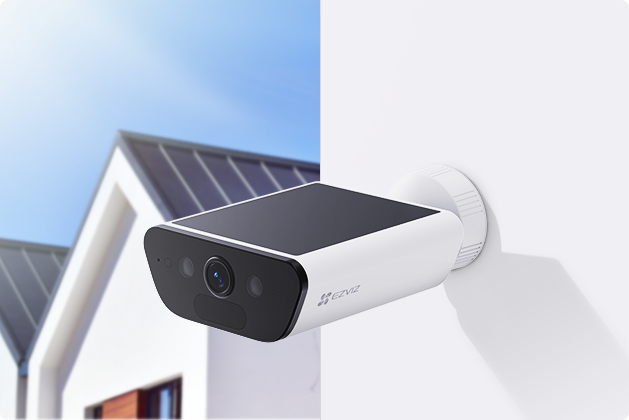

Enhanced connectivity in even large houses

Even when installed outside of houses with thick walls and large transmission range, the CB5 is able to remain vigilant and responsive with a stable Wi-Fi network, thanks to the Wi-Fi 6 technology.

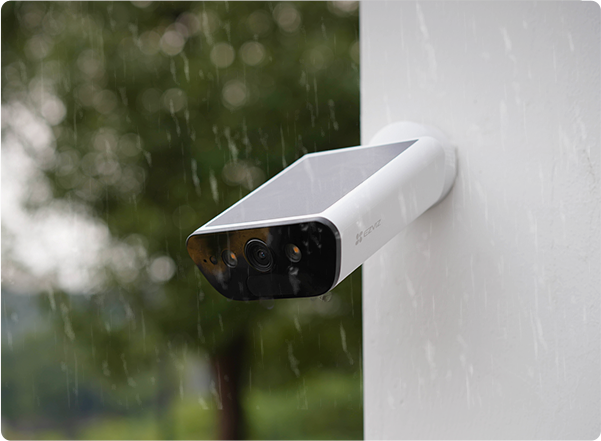

Built to last long

The CB5 is made with a durable, weatherproof enclosure. You can always trust on its performance against rain, dust and snow.

More convenience for various needs

High-quality audio to respond & warn
Easily respond to any visitor by simply using your phone to speak remotely. The CB5 can also autoplay a recorded voice message when a motion is detected.

H.265 for enhanced video experience
The H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264.

Smart integration for hands-free control
The CB5 supports easy integration to your existing voice assistants. You can pull up the video feed by simply saying “Alexa” or “Hey Google”.

Active defense to deter & safeguard
Upon detection of intruders, the camera will set off a loud siren and flash two dazzling spotlights⁷ to let the invited strangers know they have been detected.

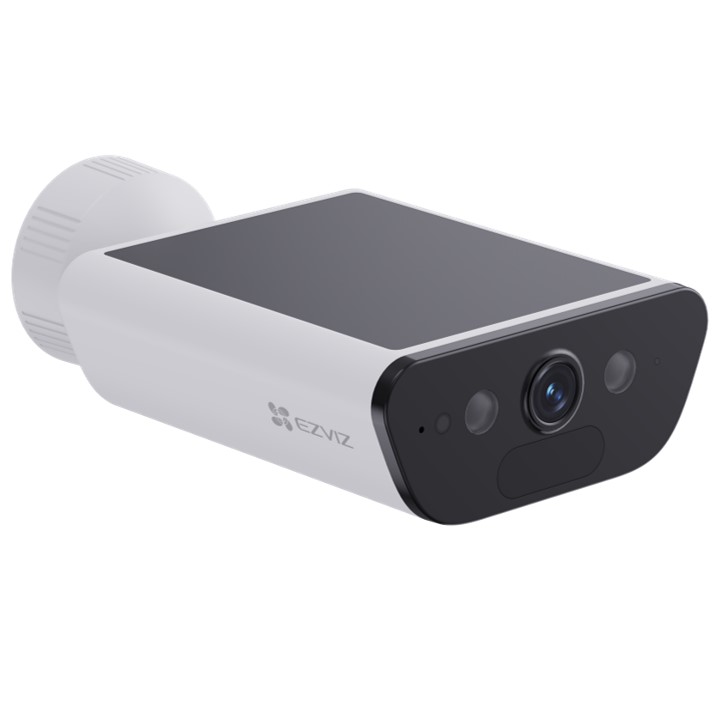

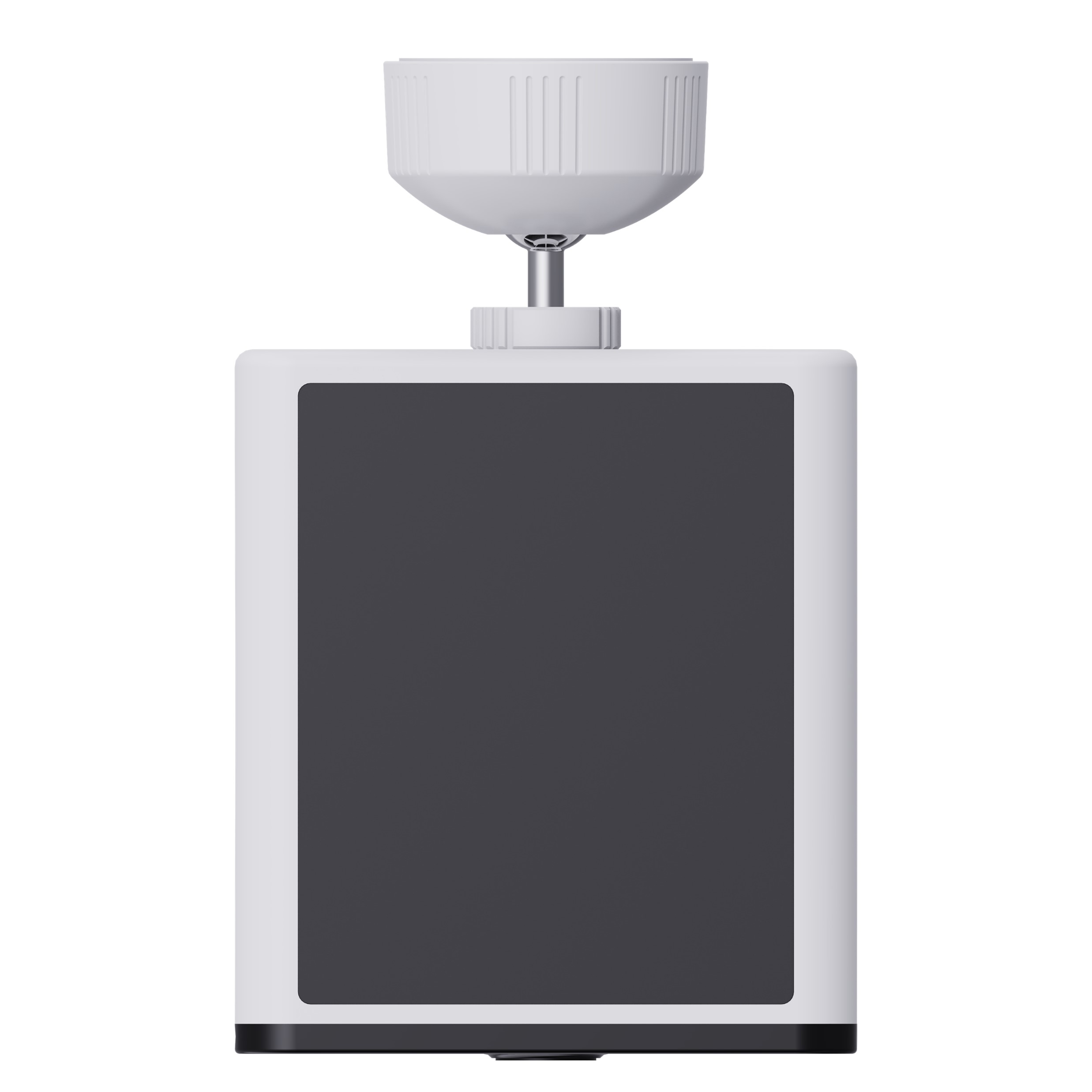

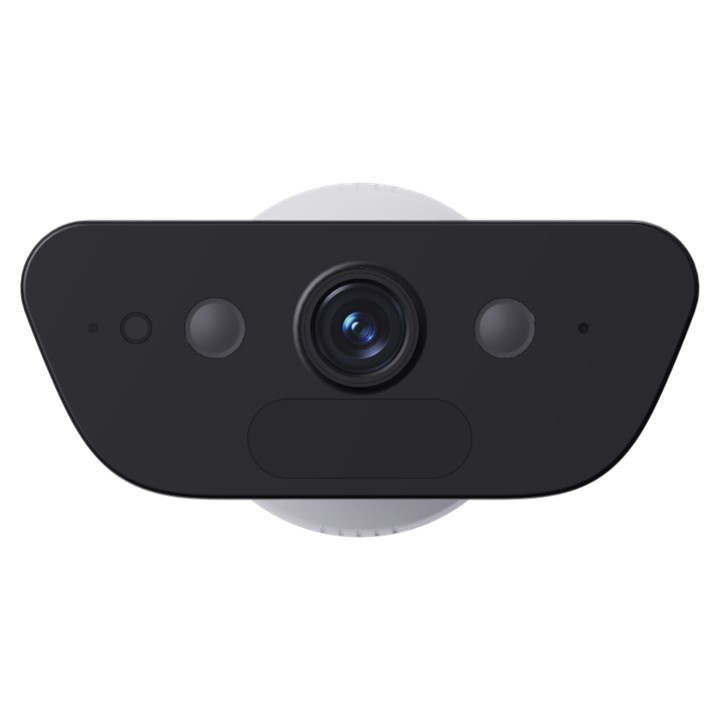

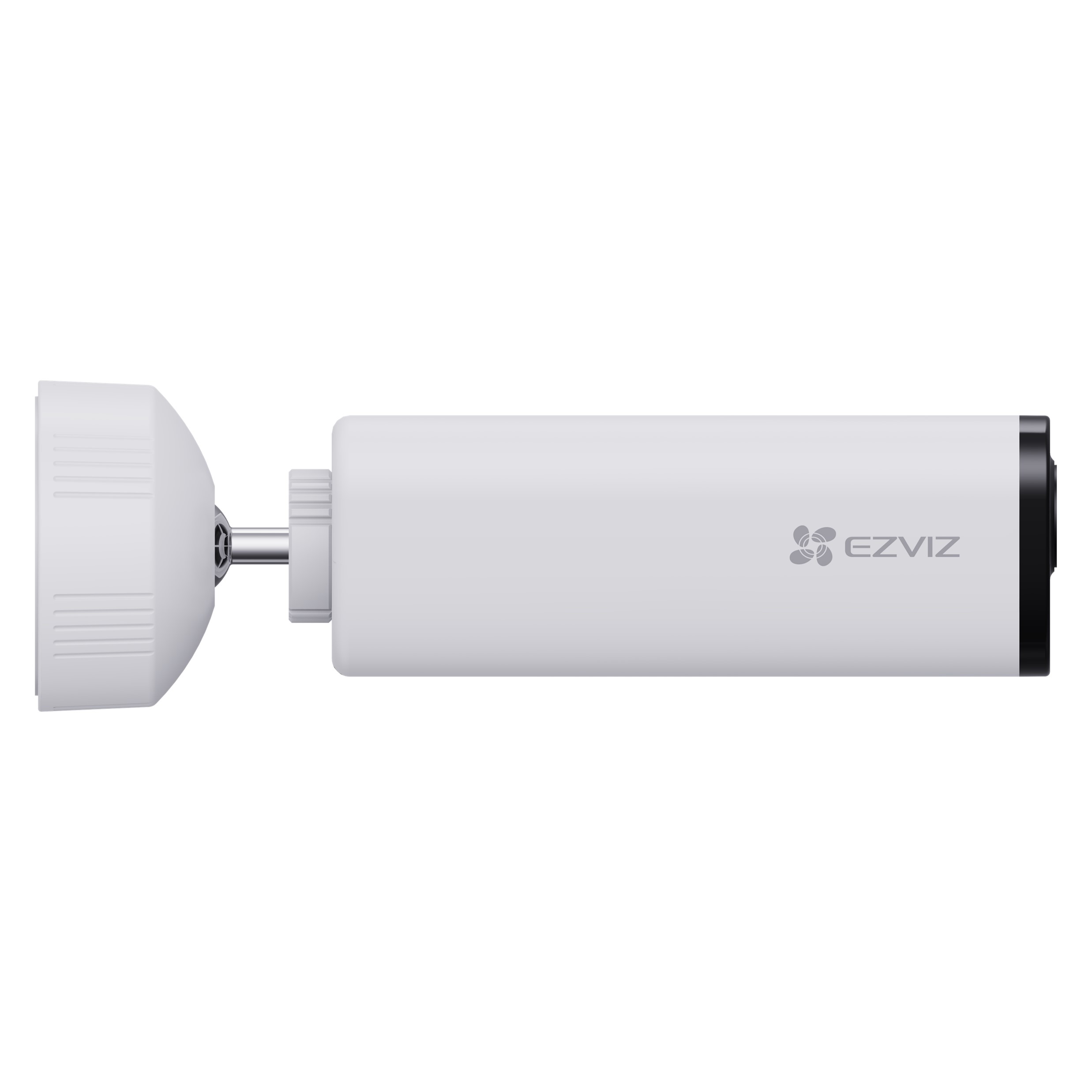

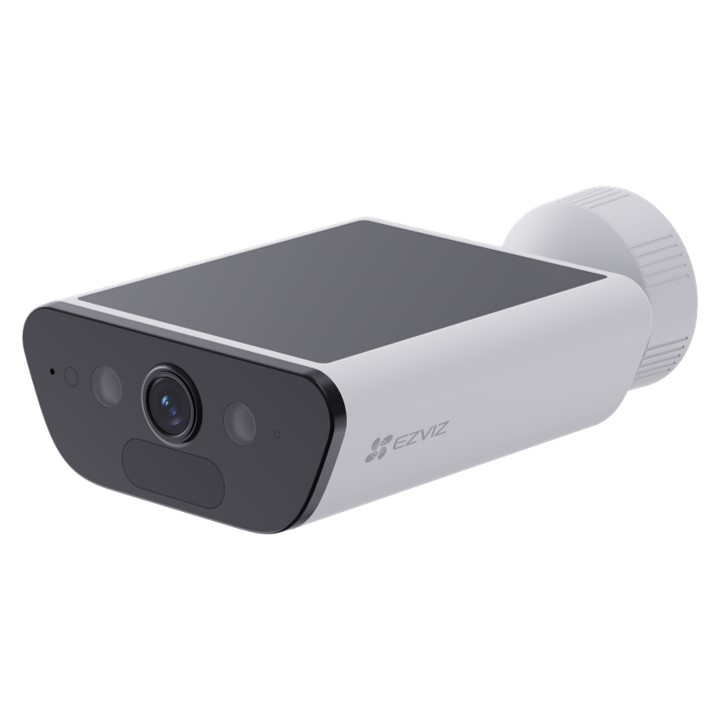

CB5 4K

Smart Home Solar Battery Camera

Specifications

Specifications
Model	CS-CB5-R100-2F8WFL
Camera
Image Sensor	1/2.7” 8-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination	0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed	Self-adaptive shutter
Lens	2.8mm@ F1.6; 135° (Diagonal), 113° (Horizontal), 60° (Vertical)
Day & Night	IR-Cut filter with auto-switching
DNR	3D DNR
Night Vision	IR Distance:15m, Color Night Vision Distance:15m
Video & Audio
Max. Resolution	3840 × 2160
Frame Rate	15fps. Self-Adaptive during network transmission
Video Compression	H.265 / H.264
Video Bit Rate	Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate.
Audio Bit Rate	Self-Adaptive
Max. Bitrate	4 Mbps
Network
Bluetooth	Supports
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n, 802.11ax
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Security	WPA-PSK/WPA2-PSK, WPA3-Personal
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps
Wi-Fi Pairing	AP pairing
Protocol	EZVIZ Cloud proprietary protocol
Interface Protocol	EZVIZ Cloud proprietary protocol
Minimum Network Requirement	8Mbps
Function
Smart Alarm	AI-Powered Human Shape Detection, AI-Powered Vehicle Detection
Two-way Talk	Supports
General Function	Anti-Flicker, Heart Beat, Password Protection, Watermark
Storage

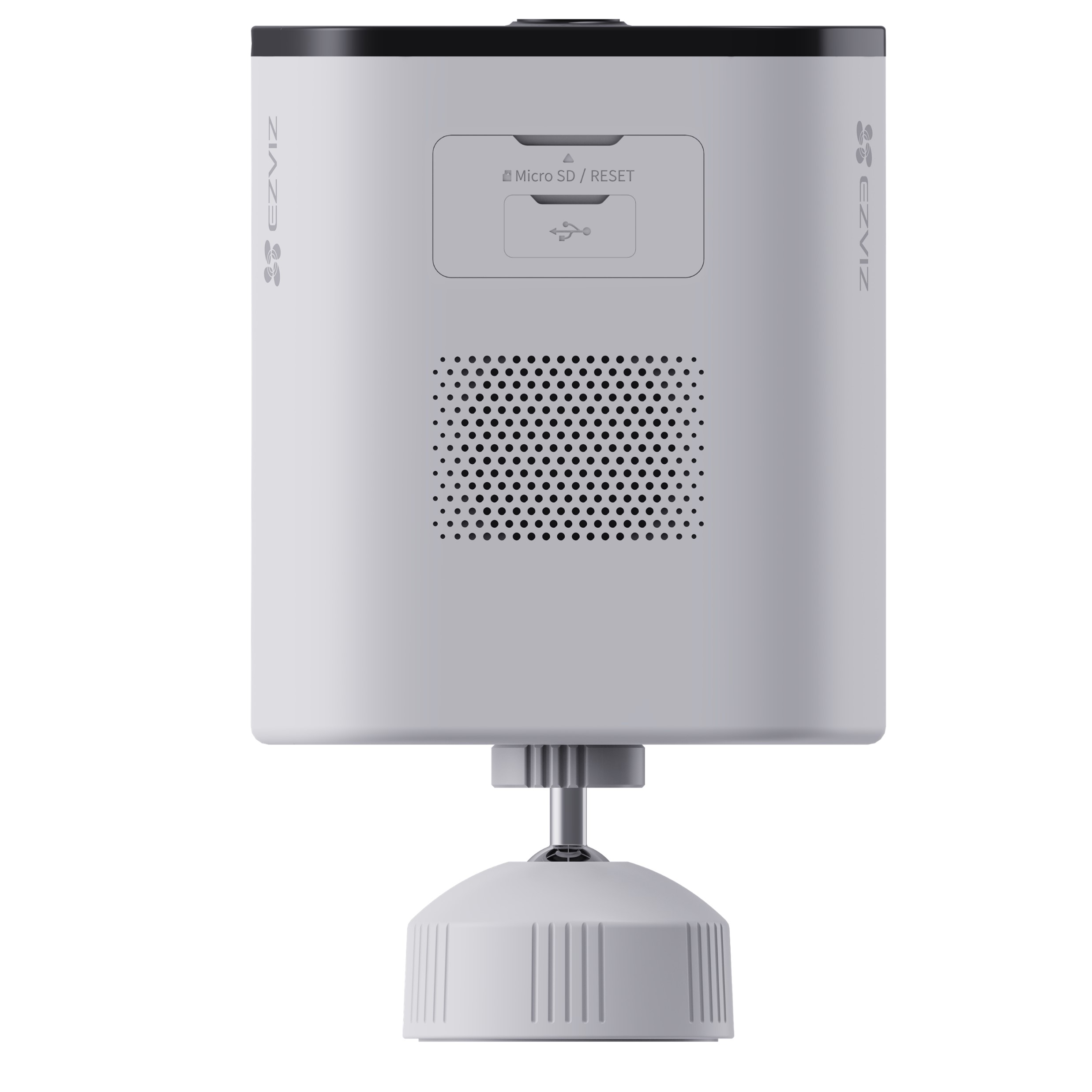

Local Storage	Supports Micro SD slot for local storage (Up to 512G)
Cloud Storage	EZVIZ cloud storage
General
Operating Conditions	-20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing)
IP Grade	IP65
Power Supply	DC 5V/2A (Compatible power adapter needs to be purchased separately)
Battery Capacity	10400 mAh
Power Consumption	Max. 10W
Product Dimensions	166 × 103 × 54 mm
Packaging Dimensions	227 × 167 × 64 mm
Weight	Net Weight: 466g With Package: 822g
In the box
In the box	- Camera
	- Power Cable

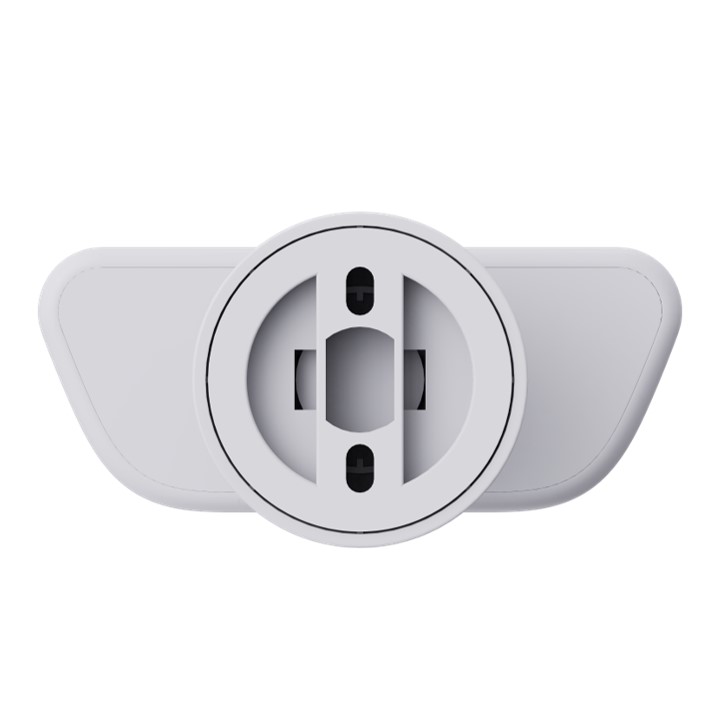

	- Screw Base
	- Drill Template
	- EZVIZ Screw Kit
	- Regulatory Information
	- Quick Start Guide
Certifications
Certifications	CE / REACH / WEEE / RoHS

• Data from EZVIZ Lab’s test results, under the following standard condition: AM=1.5 , 25°C, 1000W/m², SMQ. The data is obtained based on the usage of 5 minutes per day, including the activities of camera detection and auto-triggered recording. Actual charging efficiency may be higher or lower depending on sunlight intensity and other environmental factors, and the actual hours of camera use may also vary due to the frequency of camera activities and other environmental factors.
• Data from EZVIZ Lab’s test results, under the condition that the camera only operates with the fully charged onboard battery and does not consume additional power converted by the integrated solar panel. The data is obtained based on the usage of 5 minutes per day, including the activities of camera detection and auto-triggered recording. Actual use may vary due to environmental factors and the frequency of camera activities.
• The CB5 only supports working with the EZVIZ Solar Panels that use Type-C charging cables. The add-on solar panel is not included in the CB5 package. Please verify the product compatibility before making a purchase.
• Data from EZVIZ Lab's test results under standard conditions. The video compression efficiency will vary with the frequency and complexity of the activity captured, and other environmental factors.
• Google Assistant is not available in certain languages and countries.
• The local storage card must be purchased separately. The cloud storage service is only available in certain markets. Please verify the availability before making a purchase.
• The spotlight will not flash when color night vision mode is enabled.
