Original Accessory part - P1 Bottom Scraper Replacement Set

Maintain the effective floor-cleaning performance of your ECOVACS ULTRAMARINE P1 Robotic Pool Cleaner with this two-piece bottom scraper replacement set.

Specialised Bottom-Facing Design

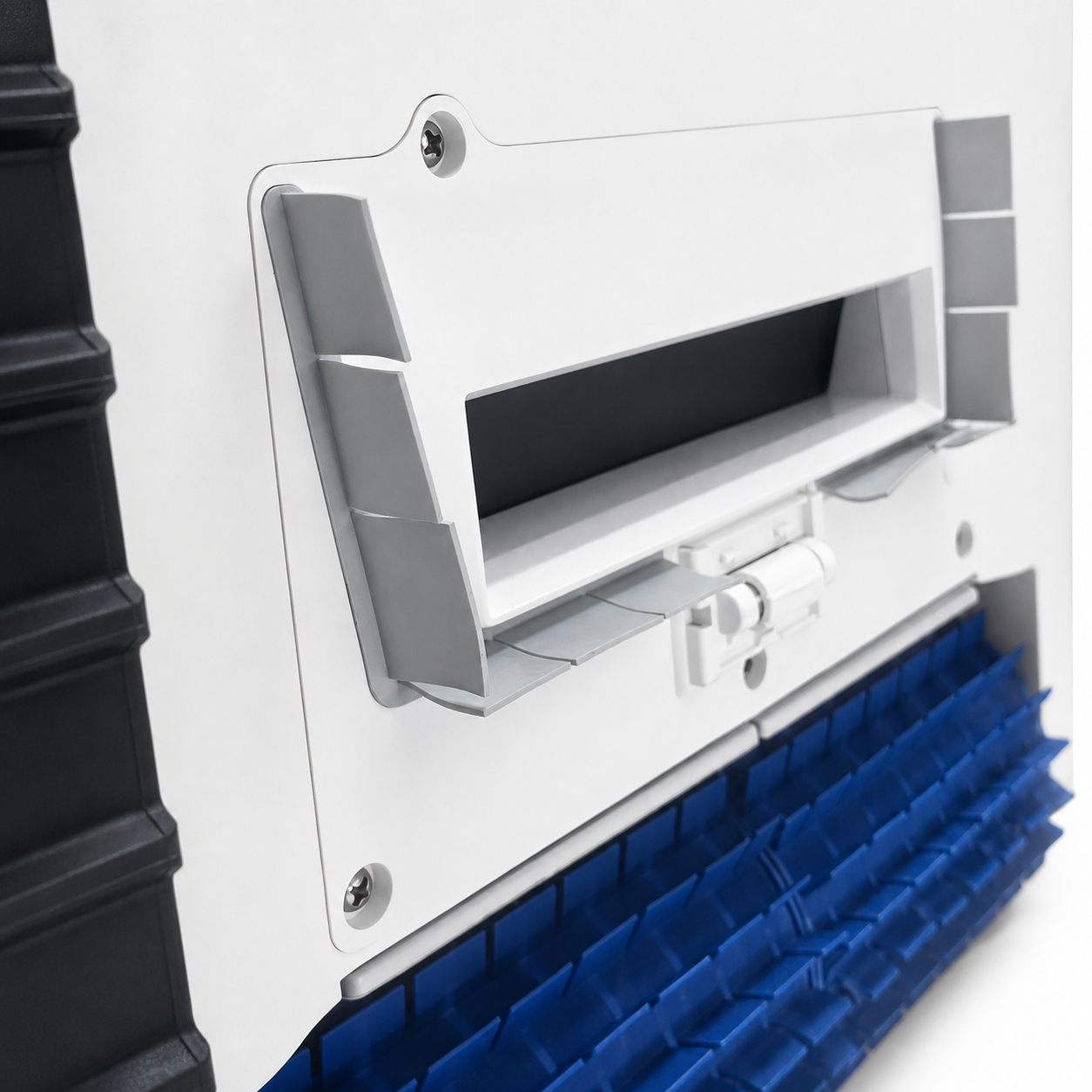

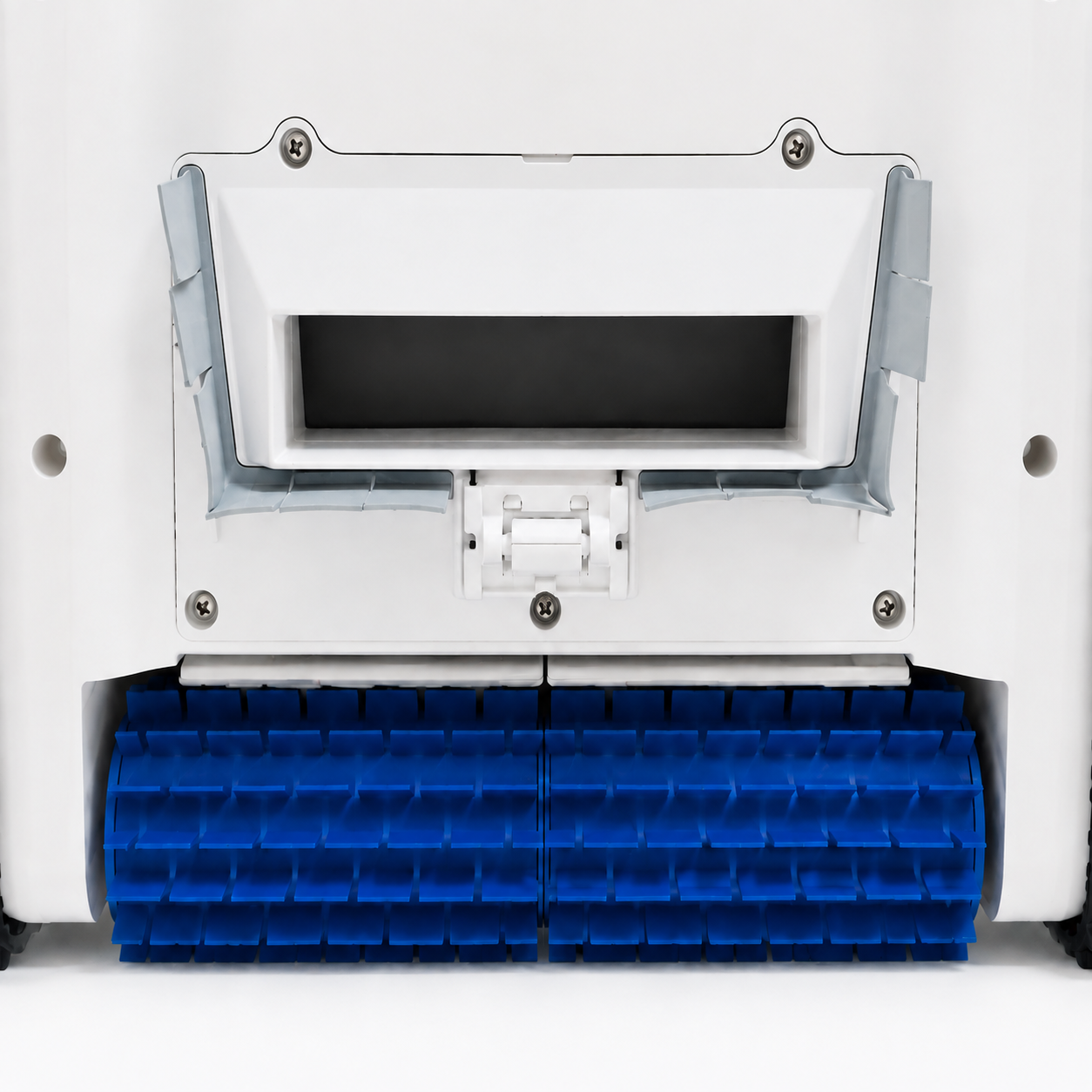

The scraper strips are positioned on the underside of the ULTRAMARINE P1, close to the cleaner’s suction inlet. This placement allows them to make direct contact with debris while the cleaner travels across the pool floor.

Loosens Stubborn Debris

The scraper physically helps dislodge dirt and heavier debris that may be stuck to the pool floor. Once loosened, the debris can be lifted more effectively by the cleaner’s suction system.

Supports 4800GPH UltraPure Suction

The scraper works together with the ULTRAMARINE P1’s powerful 4800GPH UltraPure Suction system. As the scraper loosens debris from the surface, the suction system draws it through the inlet and into the filtration basket.

Helps Maintain Effective Pickup

A worn, nicked or damaged scraper may no longer maintain proper contact with the pool floor. Replacing it helps restore the scraper’s ability to loosen debris and guide it towards the suction inlet.

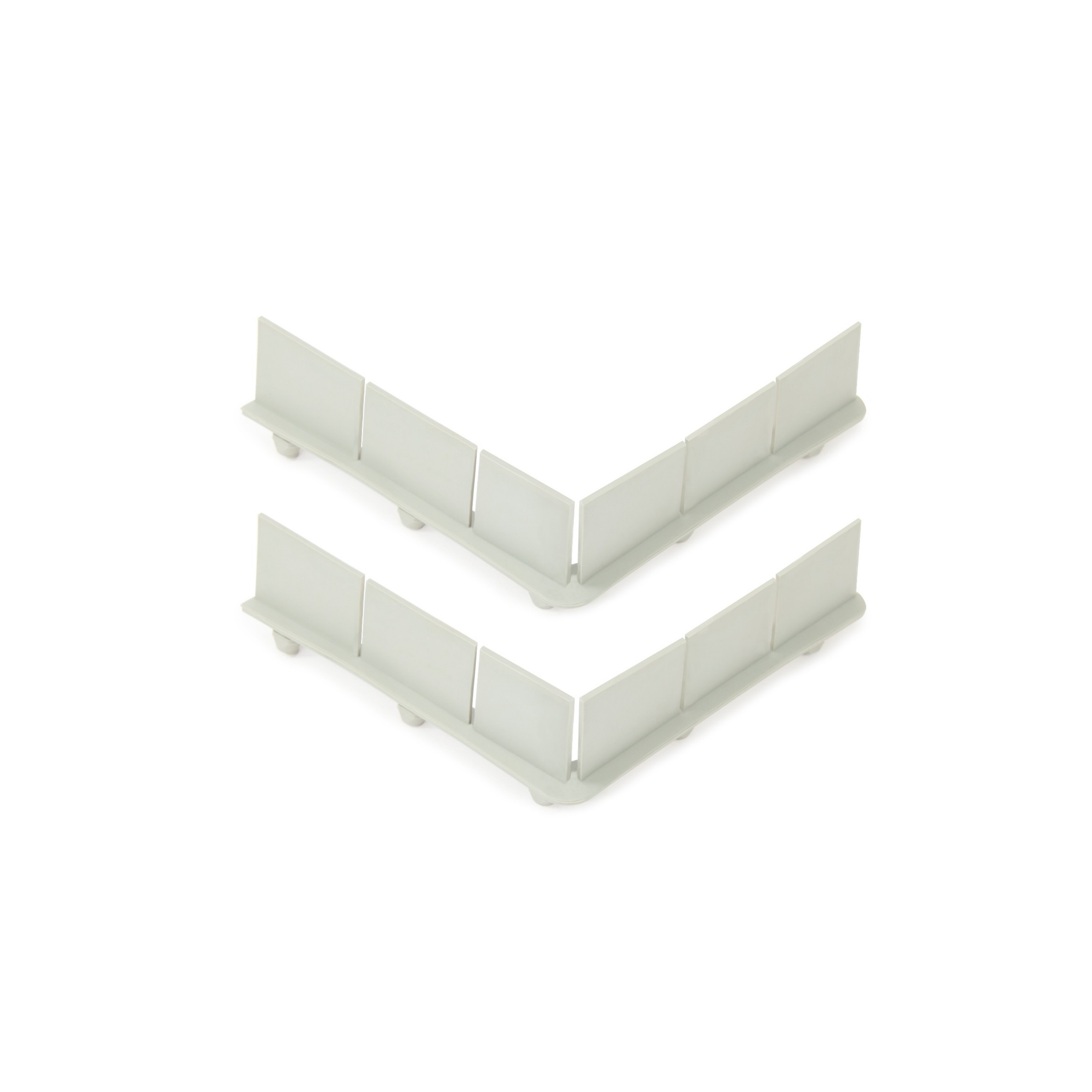

Two-Piece Left and Right Set

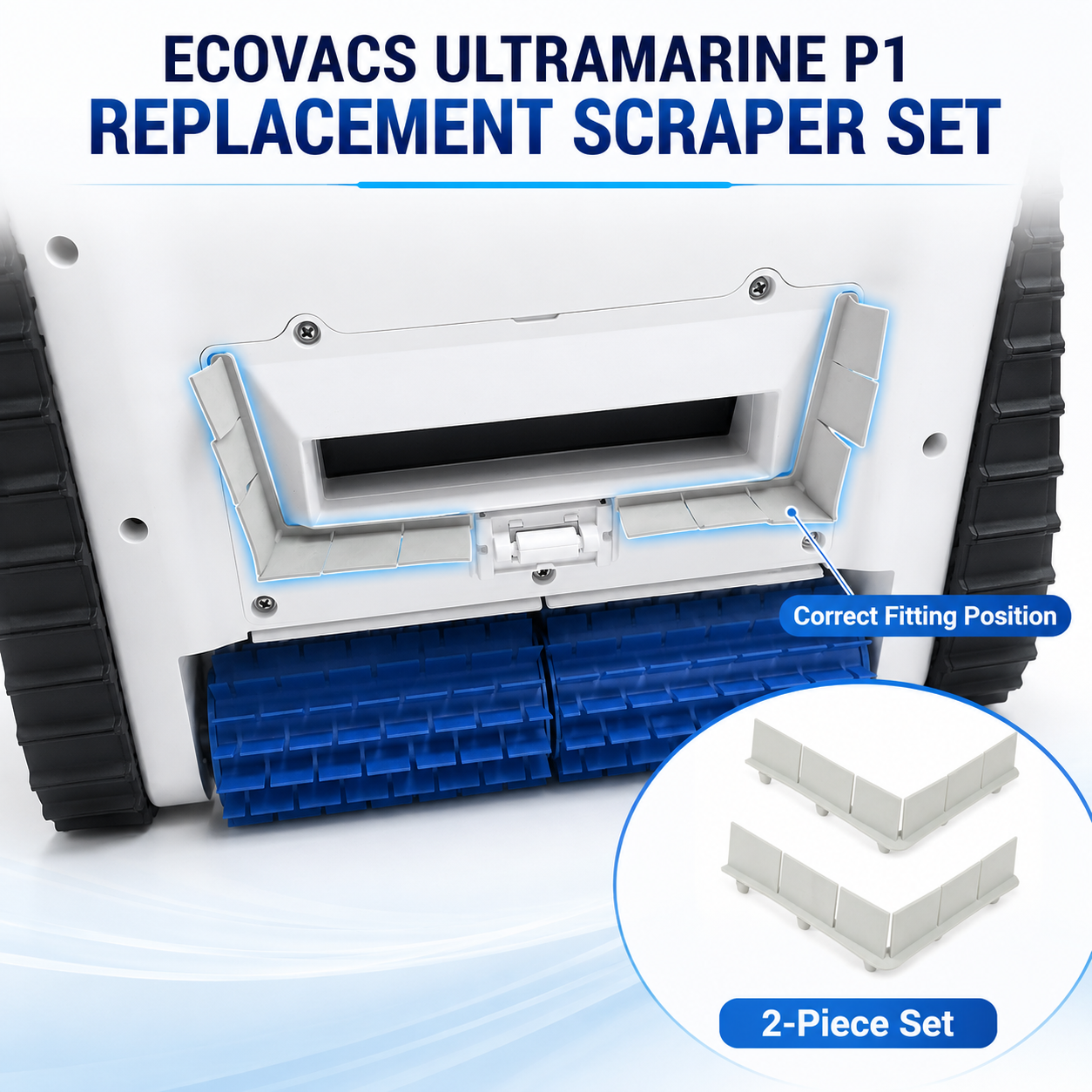

The set includes separate left and right scraper strips. Each strip is designed for its corresponding position on the P1’s bottom cover plate, helping provide balanced debris collection around the suction opening.

Secure Clip-Fit Installation

The scraper strips use integrated mushroom-head clips to attach securely to the bottom cover plate. This provides the correct positioning required for effective contact with the pool floor.

Designed for the ULTRAMARINE P1

These replacement scraper strips are designed specifically for the ECOVACS ULTRAMARINE P1 Robotic Pool Cleaner. They are ideal for routine maintenance or replacing worn, damaged or ineffective scraper components.

REPLACEMENT INSTRUCTIONS

• Switch off the ULTRAMARINE P1 and remove it from the pool before beginning maintenance.
• Use a suitable tool to carefully remove the bottom cover plate.
• Detach the mushroom-head clips securing the old scraper strips.
• Identify the correct left and right replacement strips.
• Attach the new scraper strips securely to their corresponding positions on the cover plate.
• Trim away any excess thread or material that could interfere with the filter basket.
• Reinstall the bottom cover plate and confirm that it is securely fitted before using the cleaner.

WHAT’S IN THE BOX

1 x Left Bottom Scraper Strip
1 x Right Bottom Scraper Strip

Please note: The ECOVACS ULTRAMARINE P1 Robotic Pool Cleaner, filtration basket, bottom cover plate and installation tools are not included.
